KC - 90° Tee - Ø 500 (60-500-035)
At a Glance
- Constructed with durable 304 and 316 grade stainless steel
- Compressed rockwool insulation (128kg/m³) for excellent thermal resistance
- HETAS Approved and CE marked for safety and quality
- Seamless integration with multiple appliance types: wood, oil, and gas
- Engineered for robust, secure connections with a Locking Band system
Delivery Information +
We work relentlessly to ensure you get your order fast. Estimated delivery for this product is Tuesday, August 12th. This is based on current lead times for this product. If you need a stove, or other bulky product, to be delivered by a specific time in the next 7 days, then please give us a call on 01670 206 999. We can sometimes reduce longer lead times if we pay the carrier £25 for express delivery. Visit our Shipping Information page for more information.
Warranty & Returns +
All our products come with warranties and you can read in our blog about they types and terms and conditions for warranties. Mi-Flex flue liner, for example, comes with a lifetime guarantee. Give us a call if you want to know about a specific warranty. Returns for damaged items are covered by insurance; non-damaged returns incur return delivery costs.
Best Price Match Guarantee +
We will match any price, like-for-like, on a retail basis. Give us a call if you find it cheaper and want to buy from us.
Please Note: All dimensions refer to the internal diameter of flues. If unsure, please call 01670 206999 to ensure you choose the correct products.
We Won't Be Beaten On Price
At National Flues, we continuously monitor competitor prices. This ensures that we consistently offer you the best deals on all our products. Here’s how we keep your costs low:
- Daily Price Matching: Our team adjusts prices to ensure we stay competitive.
- Bulk Purchasing Power: We sell a lot, so we can negotiate better rates with suppliers, passing the savings directly to you.
- Operational Efficiency: We have streamlined processes to reduce overhead.
Price Match Guarantee: If you find the same product cheaper within 48 hours, we’ll match it and refund the difference.
Free Delivery Over £100: Orders over £100 are free delivery (call us if delivery is required outside the mainland UK).
“I saved 20% on my purchase compared to other retailers. Exceptional service!” – Jane D.
Have Questions?
Phone: 01670 206999
Email: [email protected]
- Summary
- Specs
- Install
- FAQs

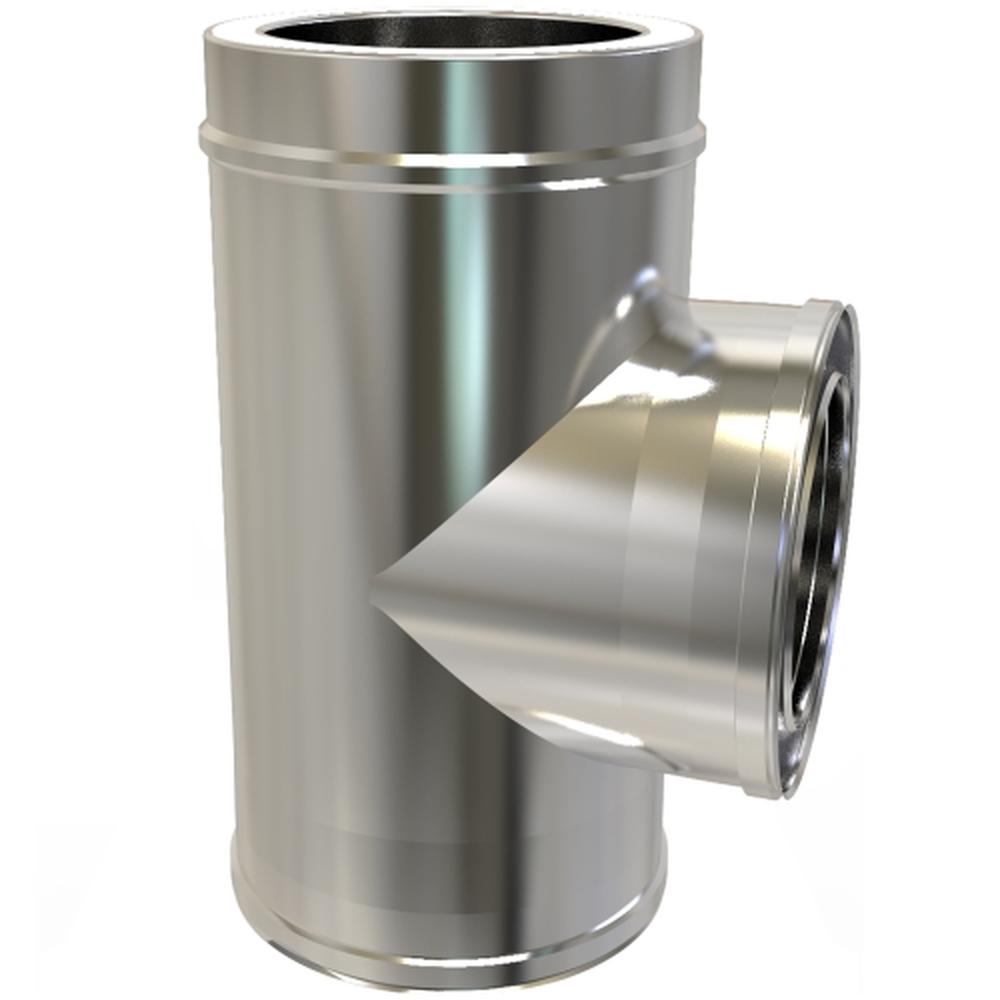

The KC - 90° Tee - Ø 500 is an essential component for connecting the flue system to the rear outlet of various appliances such as wood stoves, gas fires, and oil boilers. Constructed with an outer skin made from 304 grade stainless steel at 0.4mm thickness and an inner skin constructed from 316 grade stainless steel at 0.5mm thickness, this tee is built for durability and efficiency. The compressed rockwool insulation, with a density of 128kg/m3, ensures excellent thermal resistance.
This product is fully welded to guarantee robust construction and safety.The KC - 90° Tee is HETAS Approved and CE marked, providing you with the peace of mind that comes from knowing it meets stringent safety and quality standards. Important distance requirements should be observed: 120mm from any combustible materials when used with biomass, and 20mm when used with low-temperature oil and gas.Installation is straightforward, with all KC Twin Wall Insulated Chimney components secured together via a Locking Band. This not only ensures a snug fit but also enhances the system's overall integrity.
SKU: 60-500-035
| Technical Specifications | |
|---|---|
| SKU | 60-500-035 |
| Designation | EN1856-1 T600 N1 W V2 L50040 G60 |
| Outer Material | 304 Stainless Steel (0.40mm thick) |
| Inner Material | 316L Stainless Steel (0.5mm thick) |
| Insulation | Compressed Rockwool (128kg/m³) |
| System | KC Twin Wall Insulated Chimney |
| Fuels Supported | Wood, Oil, Gas, Low Sulphur Coal |
| Approvals | HETAS / CE |
| Distance To Combustibles | 120mm, 20mm |
| Warranty | 12 Years |
What our experts say!
"The KC - 90° Tee - Ø 500 is an excellent choice for connecting your flue system to the rear outlet of solid fuel, gas, or oil appliances. Crafted from high-grade stainless steel and boasting rockwool insulation, it ensures longevity and reliability. With our unbeatable prices, secure online payments, and reliable nationwide delivery, National Flues is the go-to supplier for both retail and trade customers."
The KC - 90° Tee - Ø 500 is primarily used to connect the flue system to the rear outlet of various appliances such as wood stoves, gas fires, and oil boilers, ensuring safe and efficient ventilation.
